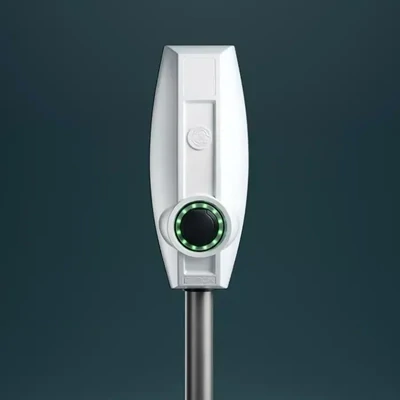

EVBox - Business Line - Single - 7.4 kW - HUB

---

EVBox Business Line is their best selling charger for Commercial (Fleet & Customers), Multi-Residential (Apartment or Strata) or selected Government (Fleet) Applications.

Compatible with all types of EVs. This is a hub (master) charger that can support multiple satellite (slave) chargers to expand your charging capacity to have up to 20 chargers in 1 location.

Distance provided @ Charging Power for 1 hour charging:

• 40km range

NB: Charging Rate is dependent on Vehicle and its Battery Management System.

BENEFITS

• Hub (master) Charger
• Supports multiple Satellite (Slave) Chargers
• Perfect for multi-residential
• Ideal for commercial & fleet
• Suitable for government fleet
• Compatible with all EVs
• Simple Interface & Easy to Use
• Easy to install & maintain
• Integrated billing for multi-residential, carparks and commercial applications
• EVBOX Best Selling Charging Station for Business Locations

ELECTRICAL SPECIFICATION

Charging Capacity: 7.4kW

Charge Mode: Mode 3 (IEC 61851-1)

Connectors: One (1)

Connector Type: Type 2 Socket

Fixed Cable Type: NA

Fixed Cable Length: NA

Connection Capacity: 1-Phase, (230-400V), 16A, 50-60Hz

Metering: S-Bus MID certified class B

Smart Charging: Adjusting max. current, charging profiles, dynamic load balancing (via MAX protocol)

SAFETY & CERTIFICATION

Ground Fault Detection: Integrated RCBO 16 A or 32 A, CCID 6 mA DC leakage detection per outlet

Housing Fire Rating: UL94 V-0, US-FMVSS / ISO 3795 passed, DIN 53438 F1/K1

Operating Temperature:-25°C to +50°C

Operating Humidity: Max. 95% non-condensing

Enclosure Ratings: IEC 60529 / IP55 / IK08

CE Certified: Yes

Compliance: CE certified, RED Directive 2014/53/EU, EMC Directive 2014/30/ EU, Low Voltage Directive 2014/35/EU, RoHS Directive 2011/65/ EU (as amended by 2015/863/EU), EN/IEC 61851-1 (2017), EN/ IEC 61851-21-2 (2018), EN/IEC 61000-32 (2014), EN/IEC 61000- 3-3 (2013), EN 301 489-1 V2.2.0, EN 301 489-3 V2.1.1, EN 301 489-17 V3.2.0, EN 301 489-52 V1.1.0, EN 301 908-1 V11.1.1, EN 301 511 V12.5.1, EN 300 330 V2.1.1, EN 300 328 V2.1.1, EN 301 893 V2.1.1, EN 300 220-1 V3.1.1, EN 300 220-2 V3.1.1

CONNECTIVITY & INSTALLATION

Authorisation: Keyfob/RFID/App (Multi-user)

Status indication / HMI: LED

WLAN communication: Dual band Wi-Fi 2.4/5 GHz, Bluetooth 4.0 for configuration with the EVBox Connect app, GPS

Cellular communication: 4G LTE-FDD CAT1 (B1/3/7/8/20) / 3G WCDMA (Band 1/8) / GSM (900/1800 Mhz)

Charging protocol: OCPP 1.5 S, 1.6 J

Positioning: GPS / Wi-Fi

Maximum installation height:

Smart Charging: Dynamic load balancing

Mounting: Wall or Pole (Bracket/Pole Required)

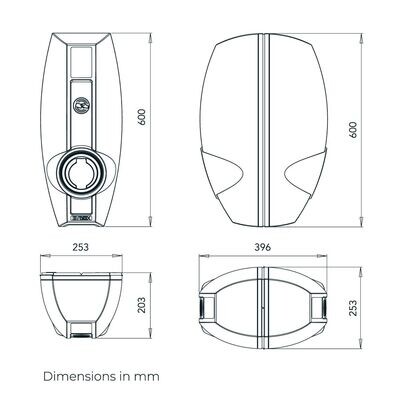

PHYSICAL PROPERTIES

Housing: Polycarbonate

Height: 600mm

Width: 255mm

Depth: 410mm

Mounting: Wall (Bracket Required)
