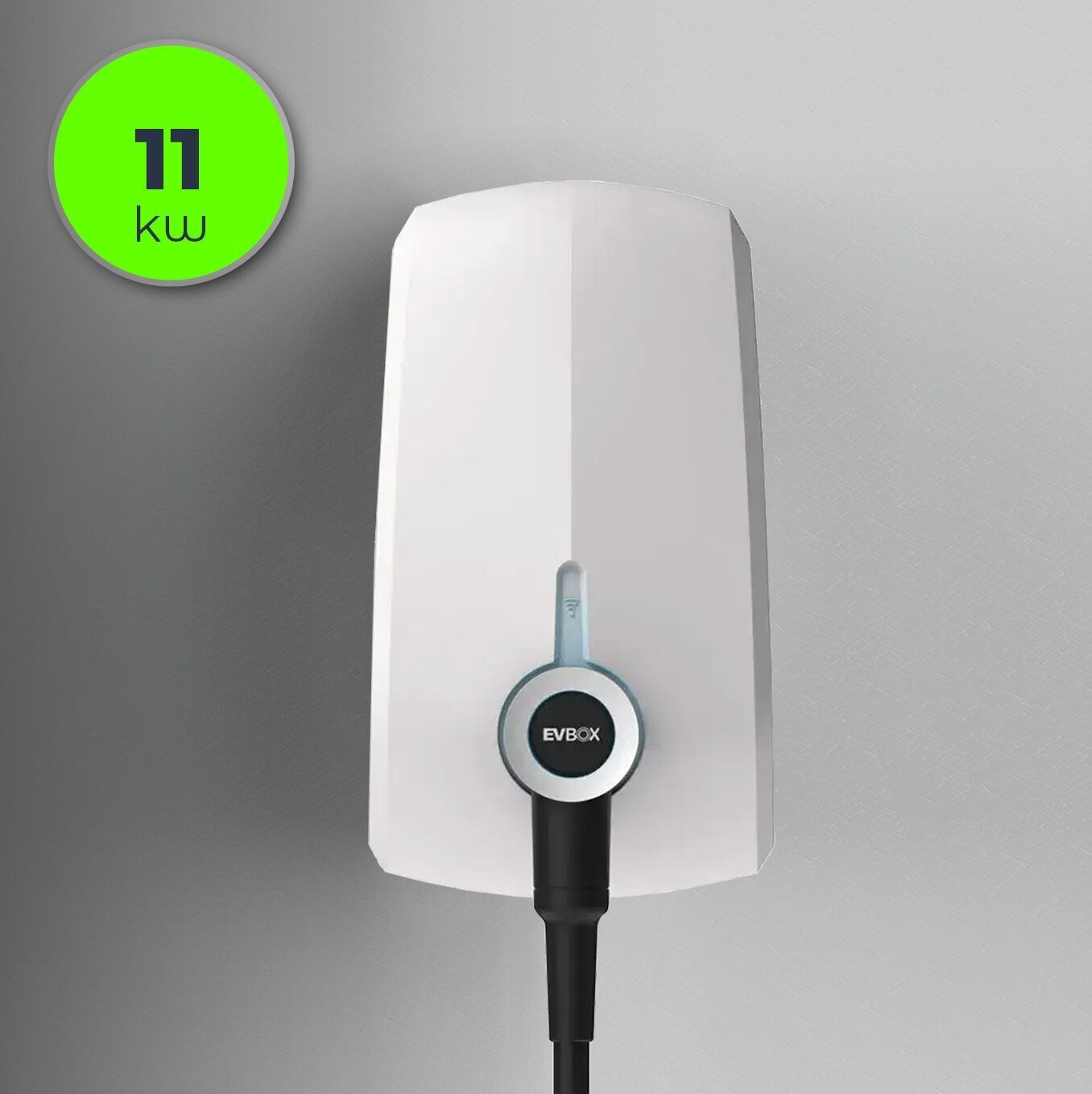

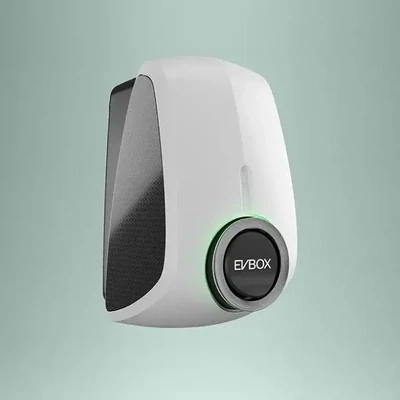

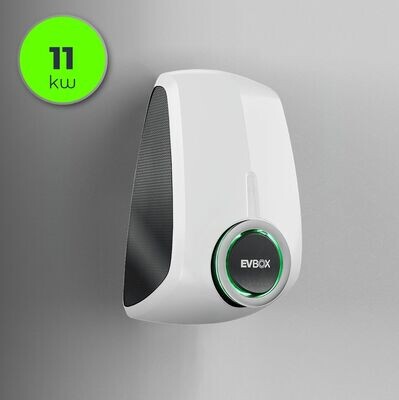

EVBox - Elvi - UMTS - 11 kW - Single

---

EVBox Elvi is suitable for Residential or Apartment Applications.

It is also suitable for motels, carparks and small business applications as an entry level commercial charger. This high performance charger is easy to use with a modular design, simple user interface and user supplied lead.

Distance provided @ Charging Power for 1 hour charging:

• Three Phase, 11kW = 60km range

NB: Charging Rate is dependent on Vehicle and its Battery Management System.

SPECIFICATIONS

Charging Capacity: 11kW

Socket: Type 2 Socket

Lead: User Supplied

Connectors : One (1)

Cable Length: User Supplied

Power Supply: 3 Phase (Can be derated to work on 1 Phase)

Management Software: Can be connected

BENEFITS

• Perfect for residential applications
• Integrated billing for multi-residential, motels, carparks and small businesses
• Simple Interface
• Easy to use
• Compatible with all EVs
• Easy to install
• User Supplied Cable

• UTMS

ELECTRICAL SPECIFICATION

Charging Capacity: 11kW

Charge Mode: Mode 3 (IEC 61851-1)

Connectors: One (1)

Connector Type: Type 2 Socket

Fixed Cable Type: NA

Fixed Cable Length: NA

Connection Capacity: 3-Phase or Selectable to 1-Phase, (230-400V), 16 and 32 A, 50-60Hz

Secondary Power Circuit: 12VDC

Relays: 2 x 35 A, 2 P, 12 V coil current

Metering: Optional 3-phase S-Bus MID-certified kWh meter in wall dock

Smart Charging: Dynamic load balancing, solar integration, and scheduled charging via EVBox Smart Charging

SAFETY & CERTIFICATION

Ground Fault Detection: 30 mA AC / 6 mA DC CCID

Housing Fire Rating: UL94 V-0, US-FMVSS / ISO 3795 passed, DIN 53438 F1/K1

Operating Temperature:-25°C to +45°C (-13°F to +113°F)

Operating Humidity: Max. 95% non-condensing

Enclosure Ratings: IP55, IK10 (IEC 60529)

CE Certified: Yes

Compliance: IEC 61851-1, IEC 61851-21-2, CE EMC EU/2014/30, CE Low voltage EU/2014/35, RED EU/2014/53

CONNECTIVITY & INSTALLATION

Authorisation: Keyfob/RFID/App (Multi-user)

Status indication / HMI: LED

WLAN communication: Wi-Fi 2.4/5 GHz (IEEE 802.11 a/b/g, IEEE 802.11 d/e/i/h) / Bluetooth 4.0

Cellular communication: 3G / UMTS (EU/US/JPN) option

Charging protocol: OCPP 1.5 S, 1.6 J

Positioning: GPS / Wi-Fi

Maximum installation height:+2000 m (6560 ft) above sea level

Smart Charging: Dynamic load balancing, solar integration, and scheduled charging via EVBox Smart Charging

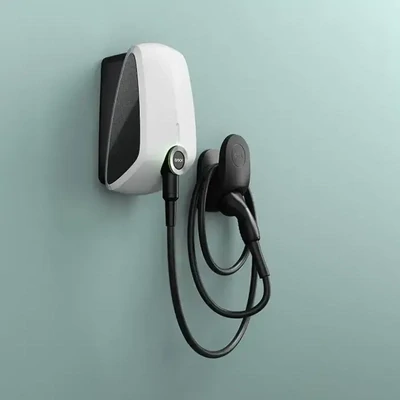

Mounting: Wall (Bracket Required)

PHYSICAL PROPERTIES

Housing: Polycarbonate

Height: 186mm

Width: 328mm

Depth: 219mm

Mounting: Wall (Bracket Required)
