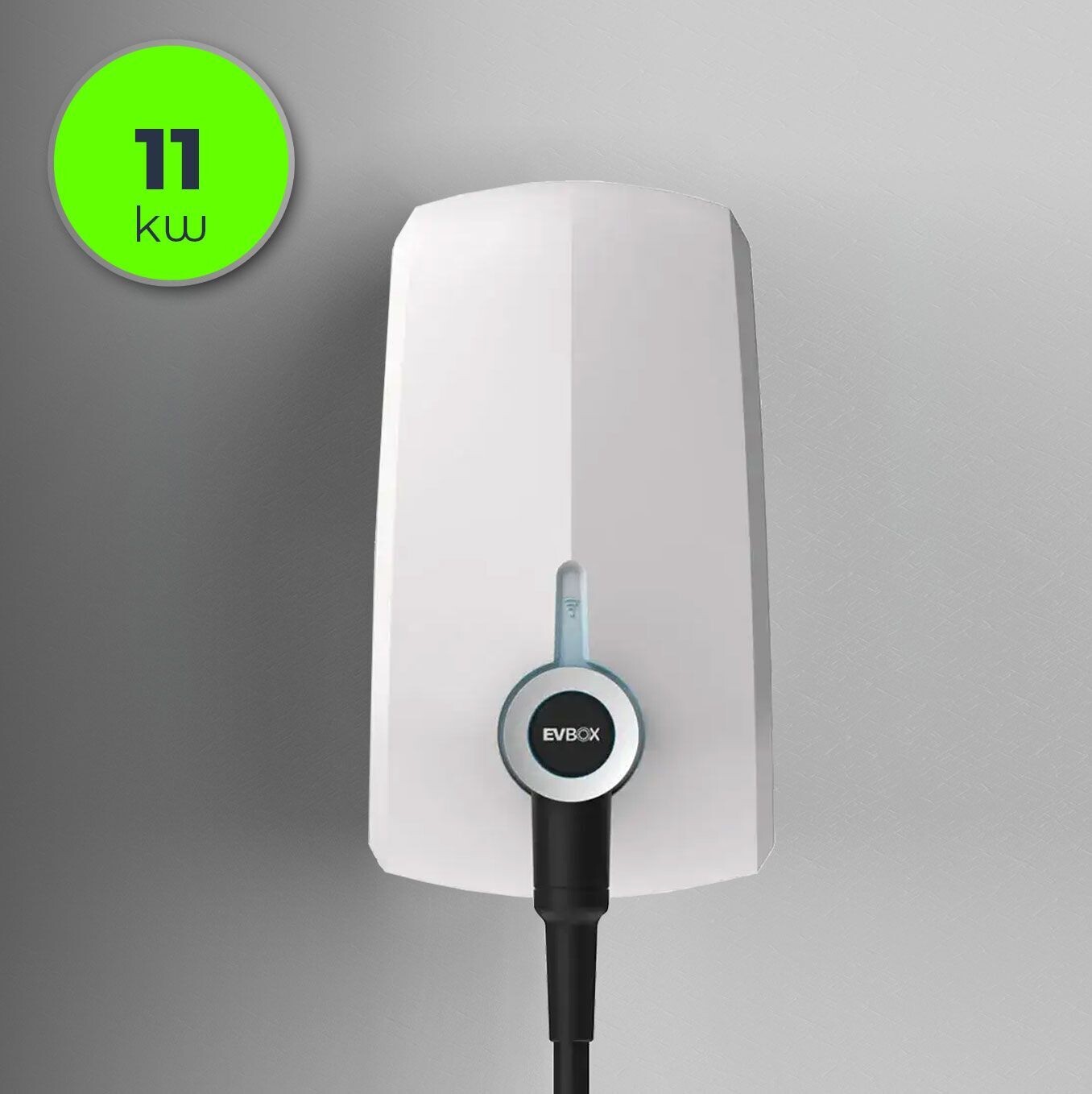

EVBox - Elvi - WiFi - 11 kW - Single

The perfect charging station for Residential or Apartment applications:

It is also suitable for motels, carparks and small business applications as an entry level commercial charger. This high performance charger is easy to use with a modular design, simple user interface and a tethered cable.

Distance provided @ Charging Power for 1 hour charging:

• Single Phase, 7.4kW = 40km range

NB: Charging Rate is dependent on Vehicle and its Battery Management System.

BENEFITS

• Perfect for residential applications
• Integrated billing for multi-residential, motels, carparks and small businesses
• Simple Interface
• Easy to use
• Compatible with all EVs
• Easy to install
• Tethered Cable
• WiFi

ELECTRICAL SPECIFICATION

Charging Capacity: 11kW

Charge Mode: Mode 3 (IEC 61851-1)

Connectors: One (1)

Connector Type: Fixed Cable

Fixed Cable Type: Type 2 (IEC 62196-2) plug

Fixed Cable Length: 6M

Connection Capacity: 3-Phase or Selectable to 1-Phase, (230-400V), 16 and 32 A, 50-60Hz

Secondary Power Circuit: 12VDC

Relays: 2 x 35 A, 2 P, 12 V coil current

Metering: Optional 3-phase S-Bus MID-certified kWh meter in wall dock

Smart Charging: Dynamic load balancing, solar integration, and scheduled charging via EVBox Smart Charging

SAFETY & CERTIFICATION

Ground Fault Detection: 30 mA AC / 6 mA DC CCID

Housing Fire Rating: UL94 V-0, US-FMVSS / ISO 3795 passed, DIN 53438 F1/K1

Operating Temperature:-25°C to +45°C (-13°F to +113°F)

Operating Humidity: Max. 95% non-condensing

Enclosure Ratings: IP55, IK10 (IEC 60529)

CE Certified: Yes

Compliance: IEC 61851-1, IEC 61851-21-2, CE EMC EU/2014/30, CE Low voltage EU/2014/35, RED EU/2014/53

CONNECTIVITY & INSTALLATION

Authorisation: Keyfob/RFID/App (Multi-user)

Status indication / HMI: LED

WLAN communication: Wi-Fi 2.4/5 GHz (IEEE 802.11 a/b/g, IEEE 802.11 d/e/i/h) / Bluetooth 4.0

Cellular communication: 3G / UMTS (EU/US/JPN) option

Charging protocol: OCPP 1.5 S, 1.6 J

Positioning: GPS / Wi-Fi

Maximum installation height:+2000 m (6560 ft) above sea level

Smart Charging: Dynamic load balancing, solar integration, and scheduled charging via EVBox Smart Charging

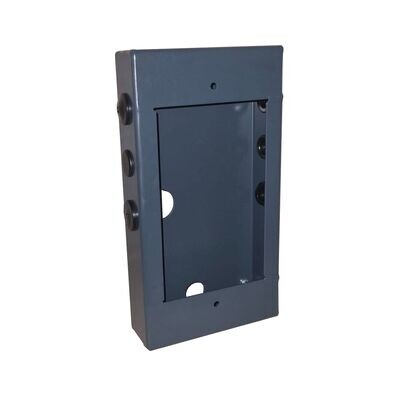

Mounting: Wall (Bracket Required)

PHYSICAL PROPERTIES

Housing: Polycarbonate

Height: 186mm

Width: 328mm

Depth: 219mm

Mounting: Wall (Bracket Required)
